Agilent Dry Turbo Pumping

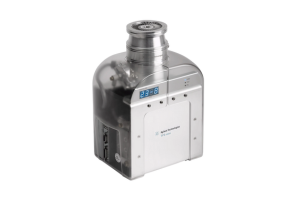

The TPS-mini portable vacuum solution combines the TwisTorr 74 FS turbo pump and a dry 10 L/min diaphragm pump in a competive package. The lightest and smallest footprint in its category, it can be mounted in any position, either on a benchtop or directly on your system by its inlet flange. The onboard display can read system pressure from a variety of active gauges.

The TPS-mini is a ready-to-use dry-pumping system and ideal vacuum solution for small volume chambers and gauge calibration systems. The simple to use, on/off switch gives you high vacuum with the flip of a switch.

The TPS-compact is a portable, hydrocarbon-free turbo pumping station. Available with either the TwisTorr 74 FS or 305 FS turbomolecular pumps and backed by the Agilent 3 m³/h (60 L/min) dry scroll pump technology, it offers the fastest pumpdown on the market in a compact package. The large pressure display is capable of reading a variety of active gauges.

The TPS-compact pumping system can operate on worldwide voltages and is CE/CSA-UL certified.

The system is ideal for medium-size chambers up to 100 L, in university laboratories, industrial applications, and medical applications. The simple to use, on/off switch gives you high vacuum with the flip of a switch.

The Agilent TPS-flexy turbo pumping system is a flexible, customizable high-vacuum system. Choose from three dry backing pumps IDP-7 scroll pump, IDP-3 scroll pump, or MD-1 diaphragm pump and two turbo pump options, Twis Torr 74 FS or 305 FS. With 40+ options to choose from, you can find the right combination for your application.

The TPS-flexy package allows you to select components and configure the system yourself to meet a wide array of challenging applications. Quickly detach the turbo pump from the platform for direct mounting on your system for maximum pumping speed.

The TPS-mobile is a customizable, high-capacity pumping system on the smallest footprint roll-around cart. Choose from more than 400 possible configurations consisting of small- and medium-sized TwisTorr turbomolecular pumps with pumping speeds from 70–700 L/s and backed by either an IDP or TriScroll dry scroll pump with 3–30 m³/hr pumping speed or DS rotary vane pumps with 6–30 m³/hr pumping speed. The vast selection of TPS-mobile systems includes the newest TwisTorr 305 technology, available in a high compression (TwisTorr 305 FS) and high throughput (TwisTorr 305 FSQ) configurations.
