Ensure Stability and Performance in Any Leak Detection Application

Agilent’s range of leak detection solutions ensure the safety, security, and consistent performance of research, vacuum, and industrial process systems. Our Helium Leak Detector (HLD), PHD-4 and Multi-Gas CrossLab sniffers, as well as C15 component leak detector are rugged, precise, and easy-to-use instruments that accurately and efficiently detect leaks in an array of industrial applications. For clean research applications, HLD configurations employ clean, dry, quiet scroll vacuum pumps. Our leak detectors feature automated start-up and calibration for maximum productivity, built in application set-ups, and an array of accessories to make any leak detection process simple.

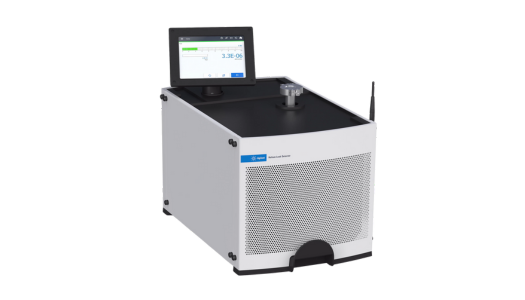

PortableHeliumLeakDetector
Request Info/Quote

Features

  • Six different application setup guides help you correctly configure your instrument for the best performance, ensuring that parameters are properly set for a thorough and efficient test
  • Large, durable, responsive, industrial touch screen rotates 180° for ideal viewing
  • Clean, intuitive user interface allows immediate access to often-used features and a flat menu structure allows you to quickly find the setting you need
  • Startup wizard simplifies set up on first-time power-up
  • Enhanced charting capabilities include zoom for closer inspection of data, color-coded set points, and time-based plot records of leak rate and pressure
  • A large work surface provides plenty of room for parts to be tested, tools, etc.
  • Improved power-off process keeps spectrometer under vacuum and protects the turbomolecular pump
  • Shipped with a power cord
  • HLD weight takes into account instrument configuration and installed features
Request Info/Quote

Specifications

Accessories & OptionsWireless remote (100 m)
Discrete IO interface
Harsh environment probe
Automated test fixture
Test fixture cable

Application Setup GuidesSniffing
Spray Helium
Auto sequencer (programmable test cycle)
High sensitivity
Split flow
PPM sniffing

CalibrationAutomatic internal and external
Able to check calibration while in test

Communications InterfaceAnalog output and Serial communications are standard
Optional discrete IO interface

Form FactorCompact

Maximum Test Port Pressure13 mbar (10 Torr, 1333 Pa)
200 mbar (150 Torr, 20000 Pa) in Gross Leak Mode

Primary PumpOil Sealed Rotary Vane Pump

Pumping Speed2 m³/h
1.2 cfm

Selectable LanguagesChinese
English
French
German
Japanese
Korean
Russian
Spanish

Sensitivity5x10-12 mbar•L/s, 5x10-12 atm•cc/s, 5x10-13 Pa•m3/s

User Interface21 cm (8.4 inch) touch screen

Weight79 lb
36 kg
