3 in 1 Fuel application by using HPLC

The aromatic hydrocarbon content in the motor fuel such as Jet fuel and Diesel fuel make a lot of impact in the exhaust emission and fuel combustion. The unique GBA solution provides the opportunity to measure such hydrocarbon from various fuels by using a single configuration for 3 different applications by using high performance liquid chromatography (HPLC) in normal phase analysis. This application helps refineries and R&D facilities for fast and accurate fuel analysis.

Jet Fuel: Mono aromatic and di-aromatic hydrocarbon

Diesel Fuel: Mono, Di and *Tri+ aromatic hydrocarbon

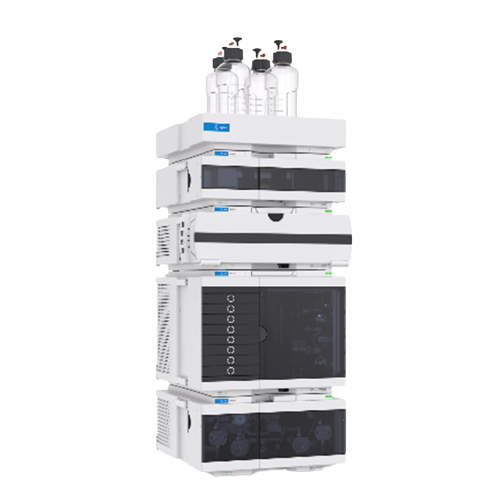

Agilent HPLC
Request Info/Quote

Applications

ApplicationQuantitating mono aromatic (MAH) , di aromatic (DAH) and poly aromatic hydrocarbon (TAH and PAH)
Measuring ObjectLiquid Sample
Targeted ComponentsJet fuel, Diesel
Reference Method• ASTM D6379/IP436 • ASTM D6591 • IP391

GBA unique HPLC Solution

It is a comprehensive system of hardware and software that provides:

  • High resolved separation
  • Easy to handle equipment
  • Robustness in repeatability and linearity (with accuracy more than Correlation 0.999)
  • Fast analysis with no carryover issues
  • Temperature controlled column compartment
  • Rugged RID with recycle mode option for solvent in standby mode
  • Inbuilt valve for backflush option to reduce the run time
  • Repeatability measurement with very low RSD

Example Processed Data

*If this method is used for diesel containing FAME, the amount of tri+-aromatics will be over estimated.
