Analysis of Fuel Additives in Petroleum Products Fluorescent Indicator Absorption Apparatus

The instrument is designed and manufactured in accordance with the requirements of ASTM D1319 and the People's Republic of China standard GB/T 11132-2008 Hydrocarbon Types in Petroleum Products Measurement Method(Fluorescent Indicator Adsorption Method). Use fluorescent indicator to make the main hydrocarbons in liquid petroleum products display on the silica gel absorption column, and calculate the volume percentage of hydrocarbons. It is the measurement index of fuel oils such as engine fuel and aviation fuel, etc.

The instrument is a special instrument for determining the volume percentage of aromatics, olefins and saturated hydrocarbons in petroleum distillate.

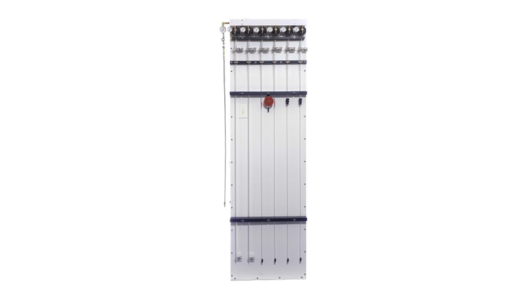

Fluorescent Indicator Absorption Apparatus
Request Info/Quote

Features

  • Conforms to ASTM D1319 specifications
  • Quick connections for columns provide faster set-up and analysis
  • Integrated vibration system for dry silica gel packing
  • Handheld UV Lamp
  • Two, four, or six column models available
  • Available in Standard Wall and Precision Bore

Included Accessories

Standard Model
  • Standard Wall
  • Standard FIA Column, Flat End (2 to 6)
  • Analyzer Tubes (40)
  • Delrin Connectors
  • Support Tip Fittings
  • Syringe, 1ml (1)
  • Needle, 4" (1)
  • Gel Bottle (2)
  • O-Rings: (10)-8mm, (10)-3mm
  • Stainless Steel Ball and Socket Joint Clamps
  • Mounting Brackets with screws (2)
  • Handheld UV Lamp
Precision Bore Model
  • Integrated Electric Vibrator Motor Precision Bore
  • Precision Bore FIA Column (2 to 6)
  • 12/2 Pinch Clamp (2 to 6)
  • 12/2 Precision Bore Tip (2 to 6)
  • Syringe, 1ml (1)
  • Needle, 4" (1)
  • Gel Bottle (2)
  • Manifold Connection Tubing
  • Stainless Steel Ball and Socket Joint Clamps
  • Mounting Brackets with screws (2)
  • Handheld UV Lamp
K415XX - Fluorescent Indicator Absorption Apparatus
