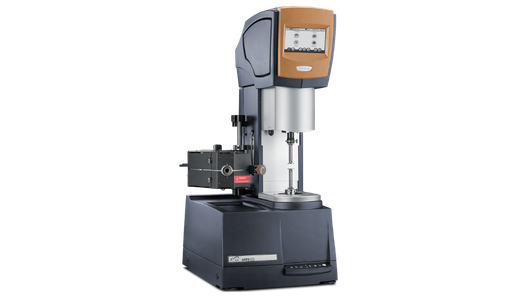

ARES-G3 Rheometer

Precision Powered by Innovation

• Measurement accuracy – achieve measurements closer to true fluid dynamics, with no geometry or inertia calibrations required, powered by separate motor transducer (SMT) technology and accurate temperature control for confident high-temperature testing
• Data and insights – capture higher quality data under a wider range of rheological conditions with dual data acquisition, faster rates, and improved functionality, plus reduced QC testing time by up to 80% with the integrated optimally windowed chirps (Fast Frequency Chirps) workflow
• Usability and efficiency – benefit from modern, intuitive software with fewer calibrations, walk-up usability, and faster throughput for a seamless and efficient testing experience

Engineered for Next-Generation Rheology

• Reliable testing environment: Dual gun heaters ensure faster, accurate oxygen exclusion for polymer and composite testing
• Superior accuracy: Separate motor transducer (SMT) technology and force-rebalanced transducer (FRT) deliver cutting-edge data with minimal corrections
• Enhanced data capture: High-speed acquisition and Fast Frequency Chirps cut test time by up to 80%
• Intuitive controls: Updated touchscreen and keypad simplify experiment setup and operation
• Trustworthy data: Access raw phase angles and waveforms for deeper insights
• Software: TRIOS Express Software enables quick setup, fewer calibrations, and walk-up usability

Separate Motor and Transducer (SMT) Technology

The ARES-G3 Rheometer’s SMT design sets a new benchmark in precision by decoupling the motor from the measurement, eliminating common calibration protocols and uncovering nuanced material behaviors that standard systems often miss. This independence is especially valuable for high-fidelity deformation testing like large amplitude oscillatory strain (LAOS), and for evaluating soft or complex materials such as emulsions and polymers under challenging conditions.

At the core of SMT lies the force rebalanced transducer (FRT), which stays motionless and captures the sample’s true response with minimal disruption from motor dynamics. When paired with the powerful drive motor, it delivers cleaner data free from typical mechanical noise, giving researchers greater confidence in their rheological insights.

Revolutionizing Rheology with Fast Frequency Chirps Technology

New optimally windowed chirps (Fast Frequency Chirps) technology¹ as integrated in TRIOS Software transforms rheology frequency sweeps by dramatically boosting speed and data density, especially at low frequencies. Fast Frequency Chirps enables ramped time temperature superposition (TTS) master curves generation in under an hour, replacing multi-hour tests without compromising accuracy.

Unlike traditional single-frequency methods, Fast Frequency Chirps’ rapid sweeps track fast-changing systems like curing or chemical reactions, making it ideal for polymers, thermosets, and composites. Fully integrated into TRIOS Software, Fast Frequency Chirps streamlines workflows with automated analysis, delivering faster, high-quality results with ease.

Enhanced Measurement Capabilities

Rheology matters most when it reflects real-world performance. The ARES-G3 Rheometer simulates a wide range of conditions, from temperature shifts to force and pressure, so materials can be designed and tested with confidence and precision.

Environmental

The forced convection oven (FCO) and advanced peltier system (APS) offer rapid temperature control and versatile testing capabilities. Both accessories feature SmartSwap technology for quick, plug and play installation.

Simultaneous Measurement

Expand upon basic rheology with simultaneous analytical techniques (dielectric, electric fields, UV) to understand the flow of a material when subjected to an external stimulus.

Beyond Rheology

The precise stress and strain controls of the ARES-G3 Rheometer empower measurements beyond standard rheology to study tribology, interfacial, linear dynamic mechanical analysis (DMA), extensional rheology, cone partition plate, and Orthogonal Superposition (OSP).
