Next Generation fast and fully Automated Cloud and Pour Point Analyzer

The Automatic Cloud and Pour Point Analyzer from Koehler Instrument Company, Inc. (USA) is the cutting-edge instrument ideal for measuring cloud point by the Optical Detection Stepped Cooling Method ASTM D5771 and pour point by the Automatic Tilt Method ASTM D5950. The Analyzer has powerful built-in cooling system with wide temperature range and can reach temperatures down to -105°C. After preliminary heating, the test specimen is inserted into the analyser. Once the program is started, the specimen is cooled in accordance with the cooling profile listed in the ASTM method and examined at either 1°C or 3°C intervals.

Koehler Instrument Company, Inc.
Request Info/Quote

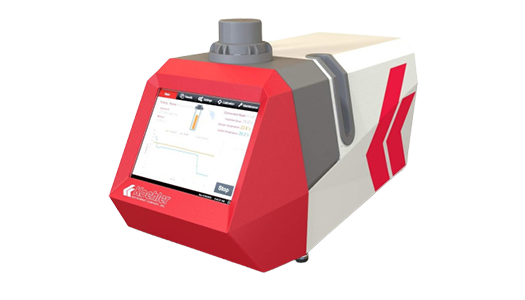

K7700X - Automatic Cloud and Pour Point Analyzers


Conforms to the specifications of: ASTM D5771, D5950
Excellent Correlation to: ASTM D97, D2500, D5853, D6074, D6158; ISO 3015, 3016; IP 15, 219; DIN 51597; FTM 791-201; NF T 60-105; JIS K2269

Key Features

  • Standard test methods are pre-programmed, or user-defined test programs can be created
  • Clear graph of temperature vs. time for sample and bath temperatures
  • Results can be easily searched, viewed on screen, printed, and exported to LIMS
  • Automatic Calibration by means of 10-point RTD Calibration, Sample Calibration, and Jacket Calibration
DetectionCloud Point: Optical Detection
Pour Point: Automatic Tilting
Cooling:Internal Cooling System
Temperature Range-105 °C to +50 °C (-157 °F to +122 °F)
Temperature Accuracy± 0.1 °C
Tilt Interval1°C or 3°C as per test method (User defined for custom method 1°C to 5°C)
InterfacesUSB(4), Ethernet
Display10.4" Colour Touch Screen
