Comprehensive Distillates Analyzer by GCxGC

This GC is configured to provide complete group-type analysis for jet fuel and diesel type streams, including biodiesels like B5, B7 and B10 products. This is the first true turnkey solution to characterize fuels beyond the gasoline range upto final boiling point of 435°C, as described by UOP 990. The analyzer is using comprehensive two-dimensional gas chromatography (GCxGC) coupled with a flame ionization detector (FID) provides hydrocarbon as specified by UOP 990, which quantifies:

  • n-parrafins
  • iso-paraffins
  • Napthenes
  • Mono/di/tri- aromatics

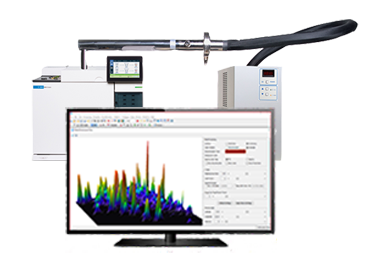

GC by GC Analyzer
Request Info/Quote

Features and Benefits

Comprehensive Distillates Analyzer

  • Upto 10 times better resolutions than linear GC
  • Modulates the widest range of compounds
  • Robust design, no moving parts
  • Pre-defined automated reporting templates
  • Delivered as Turn-Key system, operational parameters are factory tuned, fully documented and stored for each analzyer
Request Info/Quote

Method Compliance

UOP 990 - Organic Analysis of Distillate by Comprehensive Two-Dimensional Gas Chromatography with Flame Ionization Detection
