Cryogenic Mill

A compact benchtop grinding mill with powerful and shear crushing capabilities

In sample pretreatment, grinding samples into fine powders is a time-consuming and labor-intensive task. The newly developed IQ MILL-2070 is a device that makes grinding a simple process. Especially in microanalysis, pulverizing samples is a required pretreatment for sample uniformity, homogeneity, and reproducibility.

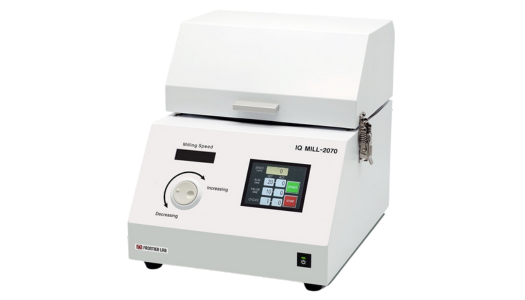

Frontier Lab Cryogenic Mill (IQ MILL-2070)

Request Info/Quote

Features of IQ MILL-2070

1. Easy to use and simple to operate
Grinding samples by simple operation

2. Fast and efficient grinding
Milling up to three samples at a time in the same program
Powerful impact and shear crushing capabilities bring significant reduction in grinding time

3. Liquid nitrogen cooling kit for cryo-milling
A compact design in which only the sample container can be precooled with liquid nitrogen before grinding.
Grinding at room temperature for most of materials

Specifications

Operating temperatures
Room temperature or below using a refrigerant (liquid nitrogen, etc.)

Setting parameters
Rotation speed (rpm) : 50 up to 3000 (stepless)
Rotation time (sec) : 1 up to 60 (10 second step)
Pause time between cycles (sec) : 10 up to 600 (10 second step)
Rotation cycle : 1 up to 10 (1 cycle step)

Safety function
Combination of double micro switch and manual lock

Main unit dimensions and weight
270(W)ｘ340(D)ｘ300(H) mm, Approx. 12kg

Power (50/60 Hz)
100/120 VAC or 200/240 VAC (450 VA)
