Degree of Corrosivity on Copper due to Petroleum Products

The Degree of Corrosivity on Copper due to Petroleum Products

The Copper Strip Tarnish Test assesses the relative degree of corrosivity of petroleum products, including aviation fuels, automotive gasoline, natural gasoline, solvents, kerosene, diesel fuel, distillate fuel oil, lubricating oil and other products. A polished copper strip is immersed in 30mL of sample at elevated temperature. After the test period, the strip is examined for evidence of corrosion and a classification number from 1-4 is assigned based on a comparison with the ASTM Copper Strip Corrosion Standards. For aviation fuels and natural gasoline, the sample tube is placed inside a stainless steel pressure vessel during testing.

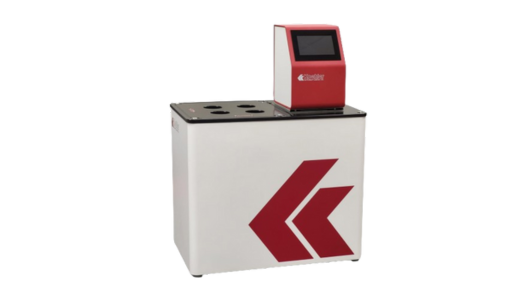

Koehler Copper Strip Corrosion - Pressure Vessel Bath

Request Info/Quote

Features

4 and 8 position bomb bath models available
20 position test tube bath model available
Conforms to ASTM D130, IP 154, and related specifications

Test Bomb Baths

Temperature-controlled water bath immerses Copper Strip Corrosion Test Bombs at the required depth per ASTM specifications. Use for testing aviation gasoline, aviation turbine fuel and natural gasoline. Fully insulated, double-wall stainless steel construction. Choice of four-bomb and eight-bomb models. Optional removable test tube rack converts four-bomb model for testing of products not requiring corrosion bomb.

Test Tube Baths

Constant temperature bath immerses 20 test tubes for copper strip tarnish tests of products not requiring a test bomb, including: diesel fuel, fuel oil, automotive gasoline, Stoddard solvent, kerosene and lubricating oil. Operator and equipment are protected by an overtemperature control circuit which automatically interrupts power to the unit should bath temperature exceed a programmed cut-off point. Welded stainless steel inner wall and powder coated steel outer wall construction with built-in support rack. Fully insulated.
