Determination of Boiling point of petroleum samples at reduced pressure

The Automatic Vacuum Distillation Analyzer from ILUDEST Destillationsanlagen GmbH with a brand name i-Fischer® DIST D-1160 CC / FISCHER® AUTODEST® 850 AC is a fully computer-controlled unit of turn-key design for Controlled Boiling Analysis according to ASTM D1160. The unit extends the current test method and does not limit your vacuum distillation testing options.You are able to define your own tailored program also beyond the current standard.The system is fully housed and equipped with doors in the front and rear to satisfy safety requirements and to facilitate service aspects. Design grants an easy maintenance also by the operator.

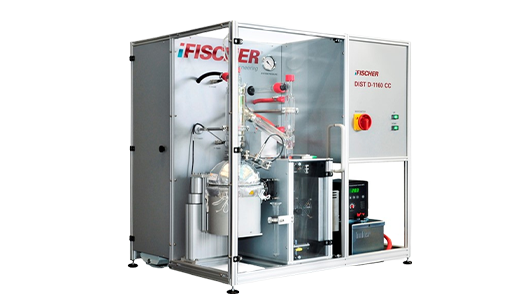

i-Fischer Dist D-1160 CC
Request Info/Quote

i Fischer Dist D 1160CC | Product Video | Iludest

Characteristics and advantages of the i-Fischer Dist D-1160 CC

The analysis is printed out simultaneously to the distillation and the distillation curves in actual boiling temperatures (ACT) and atmospheric equivalent temperatures (AET) as well as essential distillation parameters are shown on the monitor. The final data and the distillation curves are printed and stored on hard disk.

  • Unit is fully housed regarding to additional safety aspects, all front parts are made
  • transparent for convenient viewing of the whole distillation process
  • programmable set for condenser temperature following the vapour temperature
  • recalling of distillation protocols and curves at any time, all controlling distillation parameters can be modified at any moment
  • special software feature with “Supervisory Mode” for operating (partly or totally) the unit manually by overruling the automatic control with indication of every manually operated control loop in the flow chart
  • Automatic calibration of volume measuring system delivers accurate detailed distillation
  • data, precise volume measurement , volume follower system for automatic control of the distillation rate and heating rate, equipped with light barrier and stepper motor (resolution and accuracy better than 0.05 ml)
  • automatic anti foaming procedure
  • free programmable heating rates with free selectable switch point
  • automatic cleaning program procedure
  • automatic shutdown procedure (cooling phase, ventilation etc.)
  • built-in thermostatic bath and immersion cooler for the automatic operation of the vacuum
  • cold trap, closed process system, temperature range down to -40.. .-50°C. No operationwith dry ice.

Software Features of the i-Fischer  D-1160 CC Control System

  • Fully automated operation from test definition and initialisation to instrument status and reporting
  • WINDOWS~ based software, complete with PC, peripherals, printer
  • Facility for internal data storage and external transfer (e.g. LIMS by applicant)
  • Facility to interrupt or stop a test at a specified volume / temperature point
  • Facility of automatic weight calculation and compensation
  • Self diagnosis, all vital parameters and components are accessible during the run
  • Printing of multiple distillation curves on a single graph for analysis

Technical Data

Operation Temperaturemax. 400°C in distillation flask
Boiling Rangemax. 600°C AET (depending on product)
Operation Pressure Range0.1.. .760 mmHg (Torr)
Operation Pressure (standard)1 mmHg (Torr)
Flask Size5ooml

Automatic Vacuum Distillation Apparatus, complete, fully computer controlled, with data transmission facilities, satisfies ASTM D1160 requirement for performing distillation of petroleum products viz, vacuum gas oils, lube oil base stocks, atmospheric residues, palm oils or blended products like palm oil / diesel mixtures, under vacuum at 0.1...10 mmHg.
