New Cloud and Pour Point Testing - A Hassle-Free Automatic Testing Environment

Petroleum products are used in a wide variety of conditions, from standard conditions all the way to the extremes. If optimal performance is desired, top quality petroleum products must be used. It is imperative that the cold flow properties, which include cloud and pour point, freezing point, and a few others, of lubricants and oils be known when an engine or instrument is operated at very low temperatures.

If oils operate at or below their cloud and pour points, then serious damage can occur to the equipment due to the lubricants’ inability to flow. Therefore, it is paramount for the cloud and pour points to be both accurate and clear so that these suboptimal operating conditions can be avoided.

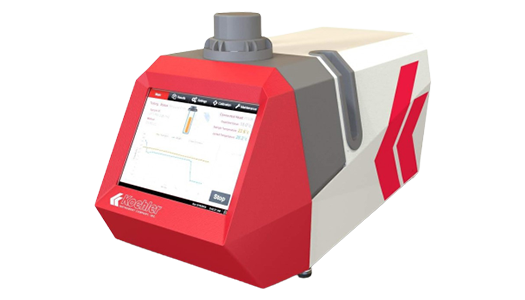

Koehler Automatic Cloud and Pour Point Analyzer
Request Info/Quote

New Automatic Cloud and Pour Point Analyzer

The Koehler New Automatic Cloud and Pour Point Analyzer is designed to conduct fully automated tests on samples to determine the cloud and pour point by Optical Detection and pour point with the Automatic Tilt Method.

Smart Advanced Features

Conforms to the specifications of: ASTM D5771, D5950

  • Excellent Correlation to: ASTM D97, D2500, D5853, D6074, D6158; ISO 3015, 3016; IP 15, 219; DIN 51597; FTM 791-201; NF T 60-105; JIS K2269.

Fully Automatic

  • Automatic determination of cloud point by Optical Detection.
  • Automatic determination of pour point via the Automatic Tilt Method.

High Performance

  • Wireless Cloud Point Head.
  • Wireless Pour Point Head.
  • Integrated Cooling System.

Industrial Touch Screen User Interface

  • 10.4-inch Integrated Color Touch Screen.

Automated Calibration Features

  • 3 Point Electronics Calibration.
  • 10 Point RTD Offset Calibration.
  • Jacket Calibration.

Software Capabilities

  • Standard test methods are pre-programmed and user-defined test programs can be created.
  • Clear graph of temperature vs. time for sample and bath temperatures.
  • Results can be easily searched, viewed on screen and printed.
  • Password Protection: Multi-level password capability.

LIMS & Network Connections

  • Results can be easily exported to LIMS.
  • 4 USB interfaces and Internet (Ethernet) Line.
