Easier Monitoring of the Water Quality with the FREESTYLE XANA for the Automated SPE

In almost every analytical laboratory, samples are routinely cleaned via SPE columns in order to obtain clean solutions for subsequent analysis or analyte concentration. The automation is the perfect solution to simplify these routine working steps, to obtain the reproducibility of the results, and to receive good recoveries.

Sample preparation in water analysis has special requirements for automation, where the processing of large-volume or particulate-laden samples is required.

The FREESTYLE XANA robotic system is designed to operate unattended 24/7 and with its non-stop programming assures complete execution of your sequences.

LCTech Freestyle
Request Info/Quote

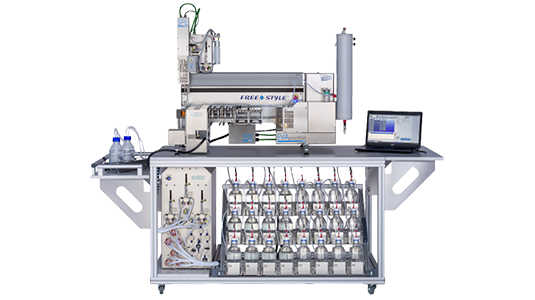

Automated Sample Preparation for Water Analysis - LCTech FREESTYLE XANA

Key Features

  • Sample rack for 1 L bottles from which a defined aliquot can be loaded (e.g. 500 mL) or up to a total of 4 L per sample from up to 4 bottles can be loaded
  • High throughput due to parallel processing in batches of 3, with additional overlapping of the time-consuming steps sample loading and drying of the column
  • Use of 3 mL and 6 mL SPE columns of any make
  • Transfer of samples with up to 4 bar overpressures to fully load even sample with suspended matter
  • Programmable flow rate on 1 - 30 mL/min
  • Up to 8 solvents can be selected for conditioning and washing
  • Optional integration of an evaporation module to get a concentrated eluate directly in a GC/LC vial for analysis.
  • Also available as "PFAS version"
