TacticID Raman spectrometers for identification of unknowns in safety and security

The Metrohm TacticID®-1064 is a field-ready, handheld Raman Spectrometer designed for fast and accurate non-contact screening by security staff and emergency services (e.g. law enforcement personnel, customs and border guards, as well as bomb disposal squads). The TacticID-1064 utilizes proven Raman spectroscopy, allowing users to obtain real-time identification of a wide variety of unknown chemicals, narcotics, pharmaceutical drugs, explosives, and other substances in less than one minute.

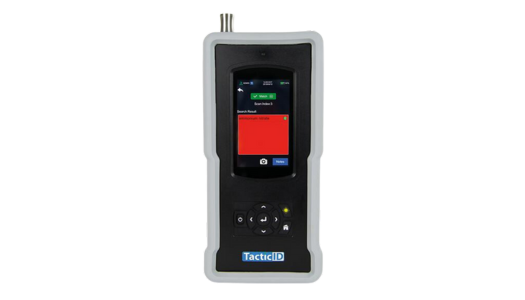

TacticID 1064 Handheld Raman Spectrometer
Request Info/Quote

TacticID®-1064

  • The TacticID utilizes lab-proven Raman spectroscopy, allowing users to get real-time actionable identification of unknown chemicals, explosives, narcotics and many other substances.
  • The TacticID®-1064 is a field-ready, handheld Raman Spectrometer designed for fast and accurate non-contact screening
  • Handly tool for security staff and emergency services (e.g. law enforcement personnel, customs and border guards, as well as bomb disposal squads).
  • The TacticID-1064 ST with 1064nm laser excitation and ST adapter for see-through applications scans a large sample area.

Key Features

  • Non-destructive material identification and verification
  • No sample preparation required
  • Analysis through glass or plastic
  • Fast, straightforward procedures
  • Highly sensitive spectrometers with repeatable results
  • Intuitive software with easy touchscreen operation

Operation

Easy, touch screen operation or optionally navigate via hardware buttons. Directly write reports to USB or synchronize results to secure database wirelessly or via USB. Detailed reports with results, measurement details, user notes and photos.

Request Info/Quote

Specifications

Excitation Wavelength1064 nm
Laser Output Power420 +/- 30 mW at 100%, adjustable in 1% increments
Spectral Range176-2500 cm-1
DisplayHigh brightness & high-resolution touchscreen
SoftwareTOS-1064 (Embedded), & TID EX (PC)
Data Formats.txt, .csv, .spc
LibrariesNarcotics, pharmaceutical drugs, cutting agents, explosives*, precursors, toxic & common chemicals (third party libraries supported). Optional: CWAs*
LanguagesEnglish, Spanish, Chinese (traditional and simplified), Japanese, French, and more
ConnectivityBluetooth, Wi-Fi & MicroUSB
BatteryRechargeable Li-ion, >4 hrs continuous operation; supports CR123 disposable batteries
Weight~ 3.4 lbs (1.545 kg)
Size9.8 x 4.3 x 2.4 in (250 x 110 x 60 mm)
Operating Temperature-10°C to +50°C
ProtectionIP68 and MIL810g drop test compliant

*Note: Libraries may be subject to US Export control to some territories.
