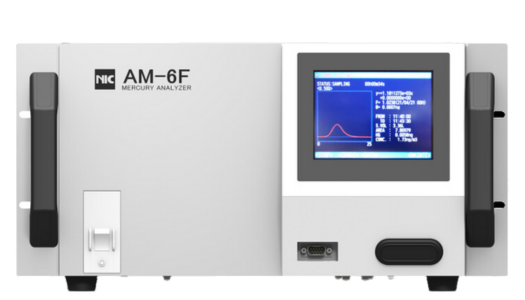

AM-6F: Fully Automated & Continuous Mercury Monitor

AM-6F is a Fully Automated, Continuous Mercury Monitor designed to measure gaseous elemental mercury (GEM) from ambient air accurately down to the sub nano-gram per cubic-meter level. The technique used is Direct Gold Amalgamation Sampling – CVAFS (Fluorescence technology) Detection.

NIC-AM6F
Request Info/Quote

All Control Within A-Single-Touch

Exceptionally Stable Ultra-Violet Excitation Source

Low-pressure mercury lamp is temperature-voltage self-regulated, generating a consistent UV light beam, allowing each atomic fluorescence measurements done with unmatched precision.

Precise & Intelligent Flow Rate

Sample gas and Argon carrier gas flows are precisely controlled and intelligently managed by Mass Flow Controller (MFC) with the best efficiency to achieve maximum sensitivity and precision to each measurement.

Automation That Includes Calibration

Automation in AM-6F includes calibration. AM-6F comes with a built-in mercury permeation source that allows user to preset periodic auto-calibration to check and auto-correct for any bias during unattended operation.

Standard calibration can also be done with the static saturated mercury vapor source, conveniently introduce with gas tight syringes into the Calibration – Injection Port.

Request Info/Quote

Know Your Instrument Remotely

AM-6F can operate with an AM-6F PC WIN Software (Optional) that enables remote data transfer.

Data content includes Sampling start / end time, data type, calibration factor value, device blank value, sampling flow rate, total sampling amount, mercury amount, mercury concentration, average mercury concentration (1 hour) with data transfer day and time specified

Data transfer is available via email with Outgoing Server Settings confirmation required
