EMP-3 Portable Mercury Survey Meter

Compact, sensitive and accurate

EMP-3 is our 3rd generation of Field-Portable Mercury Survey Meter that is designed for on-site measurement of gaseous elemental mercury (GEM) in workplace ambient air for occupational safety, health, and hygiene.

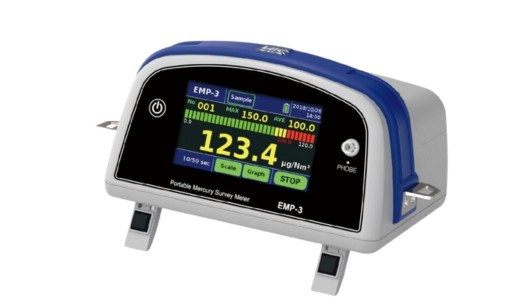

NIC EMP-3 Portable Mercury Survey Meter
Request Info/Quote

Features

User-Friendly – Easy to Use Touchscreen Graphical User Interface (GUI)

EMP-3 is equipped with a very user-friendly and responsive interface – 4.3’ LCD High-Resolution Color Touchscreen. All functional buttons are available on the same screen, allowing for easy field operation and enhancing every user’s experience. The LCD screen is also splash-proof.

Anyone can learn and operate EMP-3 with ease!

Superior Detection Range – Detection Limit from 0 to 2000 µg/m3

With NIC’s continual optics design research and advancement, the new generation EMP-3 is equipped with an extended linear detection range of up to 2,000 µg/m3. Such a wide dynamic detection range enables users to cover a broad range of applications, responding quickly to pressing situations.

Fully Functional & Accurate Portable Mercury Survey Meter

EMP-3 is equipped with a robust and highly sensitive non-dispersive double-beam cold vapor atomic absorption spectrometry (CVAAS) detector for mercury measurement. All gaseous elemental mercury (GEM) that is drawn into EMP-3 is measured by the absorbance at wavelength 253.7 nm.

Built-in GPS Function – Measurement with Peace of Mind

To conduct multiples measurements in the field, it is rather bothersome and inconvenient to take note of every location data to the measurement readings manually.

EMP-3 is now equipped with a built-in GPS where every mercury measurement done by the EMP-3 will also record the set of coordinates of that measuring location simultaneously with the mercury reading. This helps make the handling and operating process easier and provide users with peace of mind.

Request Info/Quote

Incredible Field-Portability

Light-Weight & Compact

EMP-3 weighs only 1.6 kg and has a comfortable, streamlined body with a dimension of 207W x 115D x 140H (mm). It is well-designed to sling around the body as a handy and compact device for field operation.

Convenient – Powered by battery

With its compact and lightweight body, the battery-operated EMP-3 meter can be conveniently transported and used in the field where electricity source is scarce or unavailable. All on-site mercury measurement is made possible and convenient.

Options - Expanding Applications

Mercury vapor can be present in different concentration levels, depending on whether mercury is used as raw materials in the production process or as a by-product, polluting the environment as gaseous to the air or liquid to the effluent.
On-site mercury measurement needs can be slightly unpredictable. EMP-3 has the versatility to configure for expanded applications.

  • Hi-Lutor – Exploring the Extreme
  • AQUA Kit – For mercury measurement in aqueous sample
  • Tedlar Bag – For Mercury in Natural Gas / LPG measurement
