VIONIC powered by INTELLO

Highlights

VIONIC powered by INTELLO combines experimental possibilities, intelligent software, and the most complete data in one setup.

• Highest combination of specifications in one single instrument
• Electrochemical Impedance Spectroscopy (EIS) up to 10 MHz
• Selectable floating allowing you to use any cell you want
• Analog scan for accurately measuring processes at the interface
• Second sense (S2) for obtaining additional information from the electrochemical cell

Benefits

Pure versatility: All for one, all in one instrumen

VIONIC combines the highest specifications in one single instrument

• Compliance voltage: ± 50 V
• Standard current: ± 6 A
• EIS frequency: up to 10 MHz
• Sampling interval: down to 1 µs

Pure safety: protect your cell, your lab, and your data

VIONIC comes with many smart hardware and software safety features:

• VIONIC stores up to 10 million data points, more than enough for typical electrochemical measurements.
• The accessible Cell Button ensures safe handling and troubleshooting.
• Oscillation Protection protects your sample in case of unexpected potential oscillations.
• Cell Isolate protects your sample and your instrument.

Pure efficiency: INTELLO streamlines your workflow

VIONIC and its INTELLO software are bursting with timesaving features that optimize any workflow:

• Both routine & exploratory measurements are possible.
• Main parameters streamline the workflow for easy delegation.
• Easily customize the multi-plot overview using Insight Plots.
• Save Data conveniently saves your data automatically and continuously.

Feature overview

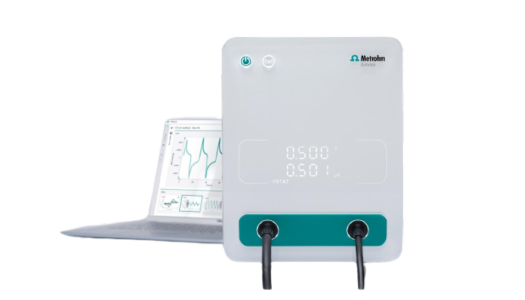

VIONIC is our new-generation potentiostat/galvanostat that is powered by Autolab’s new INTELLO software.

VIONIC offers the most versatile combined specifications of any single instrument currently on the market.

• Compliance voltage: ± 50 V
• Standard current ± 6 A
• EIS frequency: up to 10 MHz
• Sampling interval: down to 1 μs

Also included in VIONIC’s price are features that would usually carry an additional cost with most other instruments such as:

• Electrochemical Impedance Spectroscopy (EIS)
• Selectable Floating
• Second Sense (S2)
• Analog Scan
